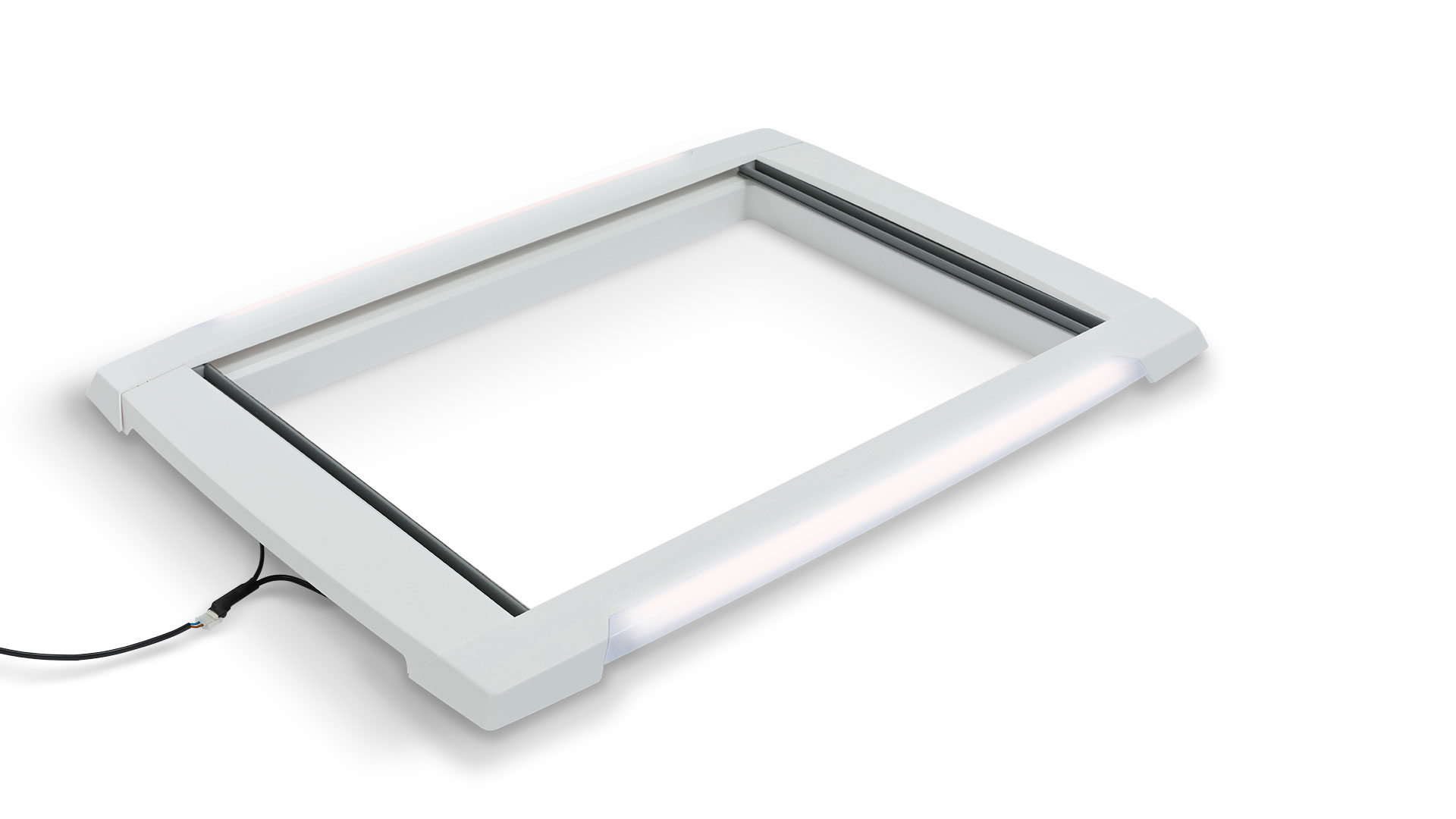

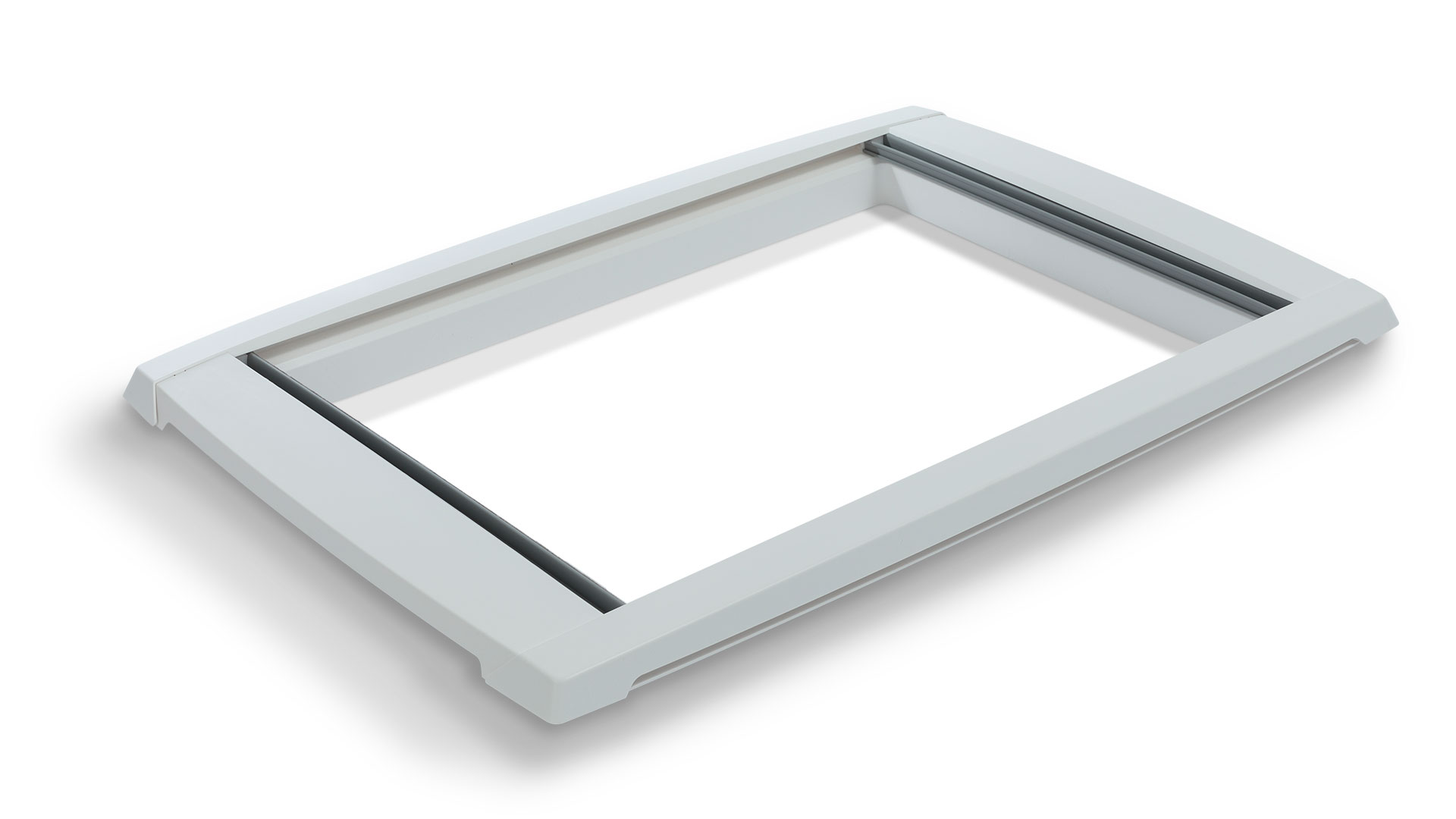

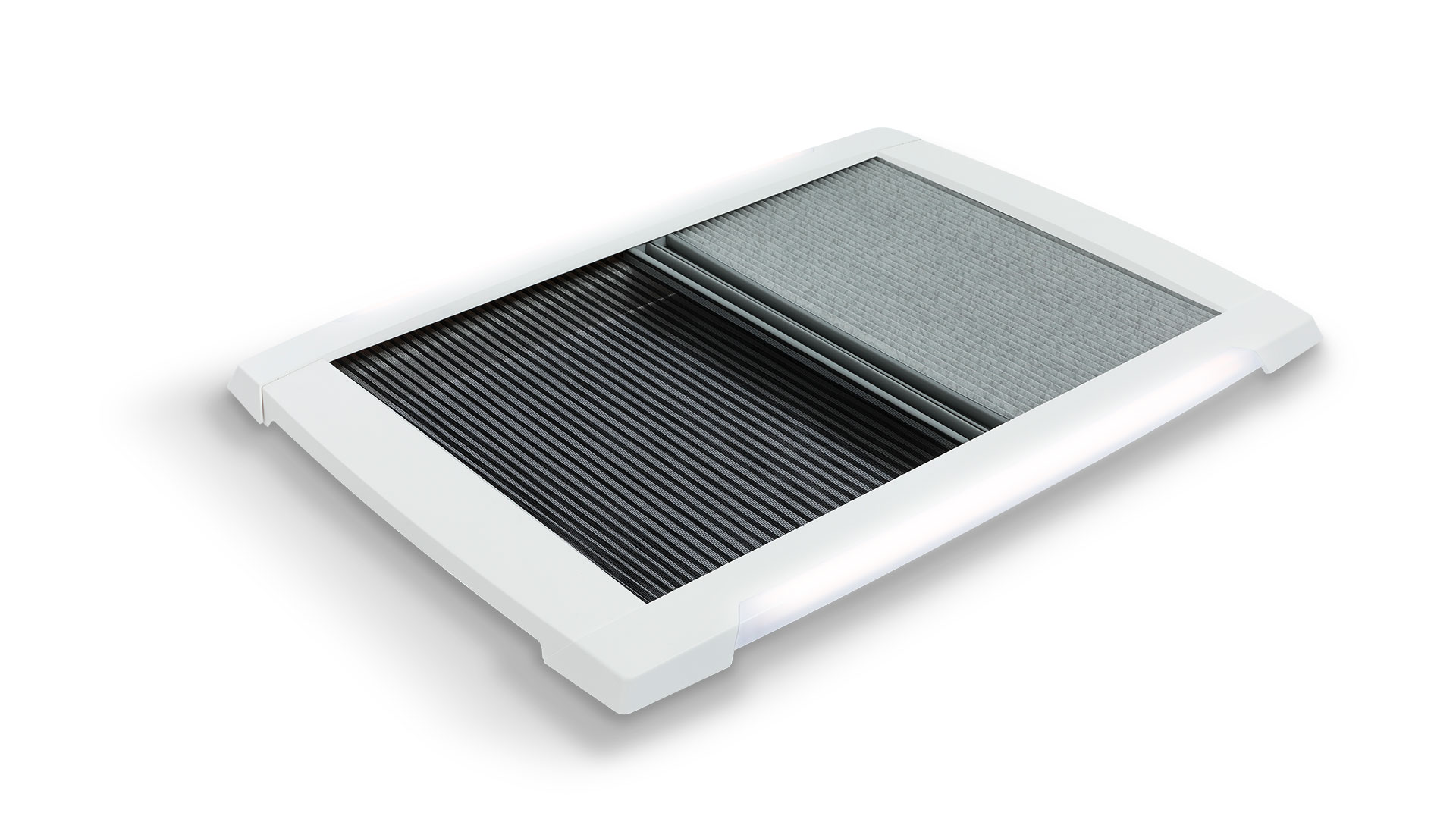

MPK's interior frames make your skylight even more comfortable: the fly net lets light and air in and keeps mosquitoes and spiders out. The blackout roller blind ensures undisturbed sleep even with continuous ventilation. And with the optional LED interior frames, you can supplement your skylight with flexible, practical interior lighting for motorhomes or caravans: the LEDs are extremely energy-saving and long-lasting, have a pleasantly warm light color and can be dimmed as desired. A diffusing glass pane ensures good light distribution. By the way: illuminated side panels are also available individually for retrofitting.
Properties
- energy-saving LED lighting
- High luminosity, warm light colour
- Diffusing glass pane for good light distribution
- dimmable LEDs
- Illuminated side panels available individually for retrofitting
Article numbers
| Article design | Frame colour white | Frame colour signal white | Weight approx. |
|---|---|---|---|
| Interior frame with pleated blind - model 75P | 7550.22PW-K | 7550.22PSW-K | 1400 g |
LED light source data
| Light colour | ~ 3000K |
|---|---|
| Energy efficiency class | A+ |
| Nom. Useful luminous flux | 2 x 500 lm |
| Mains voltage | 12 – 14V DC |
| Consumption | 2 x 5,6 kW/h / 1000h |
| Nominal service life | 10.000 h |
| Number of switching cycles | 50.000 |
| Start-up time until 60% of full brightness is reached | < 1 sek. |
| Nomin. Half-value angle (Not suitable for accent lighting) | 60° |
